ITD 70 A 4 Y 7 Incremental encoders with through hallow shaft- type ITD70A4Y7

بامر Baumer
Favourites Add to favorites
Rating
5

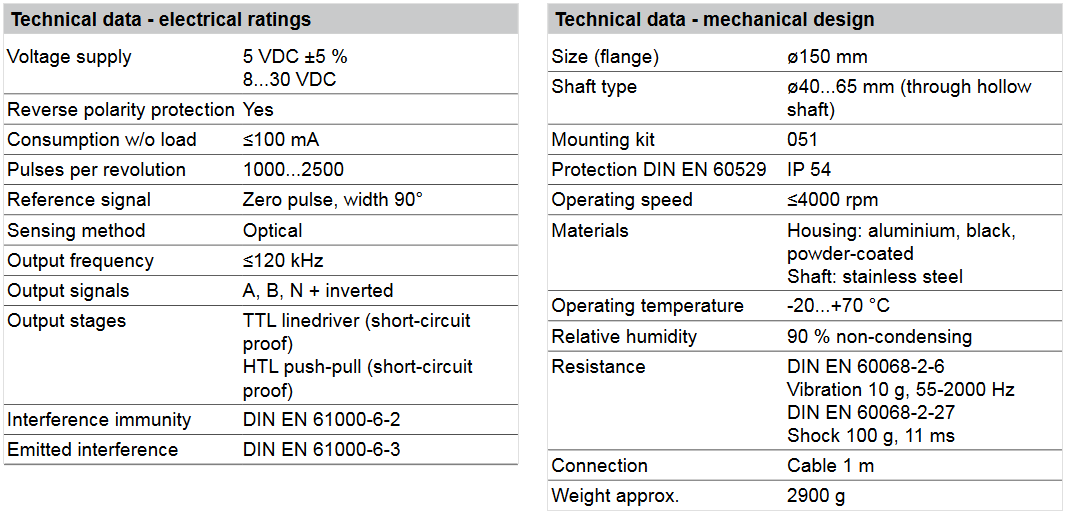

Datasheet
Datasheet
Temperature -20...70 ℃
Pulse 1000 - 2500 pulse
Speed(RPM) 4000 rpm
Frequency 120000 Hz
Output stages HTL / TTL
Size (flange) 150mm
Through hollow shaft 40-65mm
Labels industrial hollow shaft | baumer hollow shaft ITD 70 A 4 Y 2 | baumer through hollow shaft ITD 70 A 4 Y 7 | ITD70A4Y encoder baumer | ITD 70 A 4 Y 9 | Incremental baumer encoders | انوکودر افزایشی بامر | هالو شفت ITD70A4Y باز سری | rotary encoders hallow shaft | Optical sensing method | Output signal level TTL or HTL | Mounting by torque support | baumer encoder through hollow shaft |
ITD 70 A 4 Y 7
Sales Expert
Sales ExpertMotion Control equipment Section

encoder@radelectric.co

+98 9371036467

+98 2191099990

Description

Features

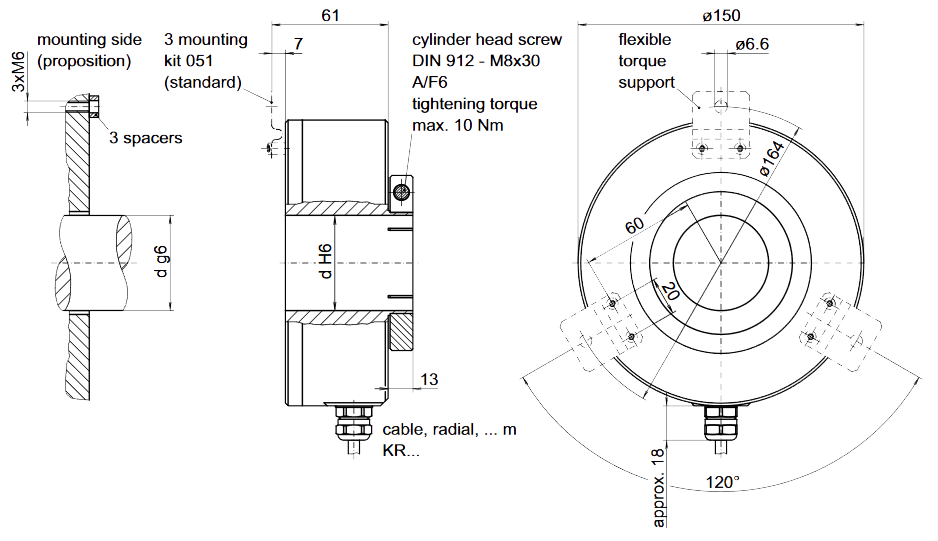

Through hollow shaft ø40 to ø65 mm



  • Encoder with through hollow shaft max. ø65 mm
  • Max. 2500 pulses per revolution
  • Optical sensing method
  • Mounting by torque support
  • Mounting hole circle ø164 mm
  • TTL or HTL output signals
  • Cable output radial



Optional

  • Cable with connector
