ITD 41 A 4 Y68 Incremental encoders with through hallow shaft- type ITD41A4Y68

بامر Baumer
Favourites Add to favorites
Rating
5

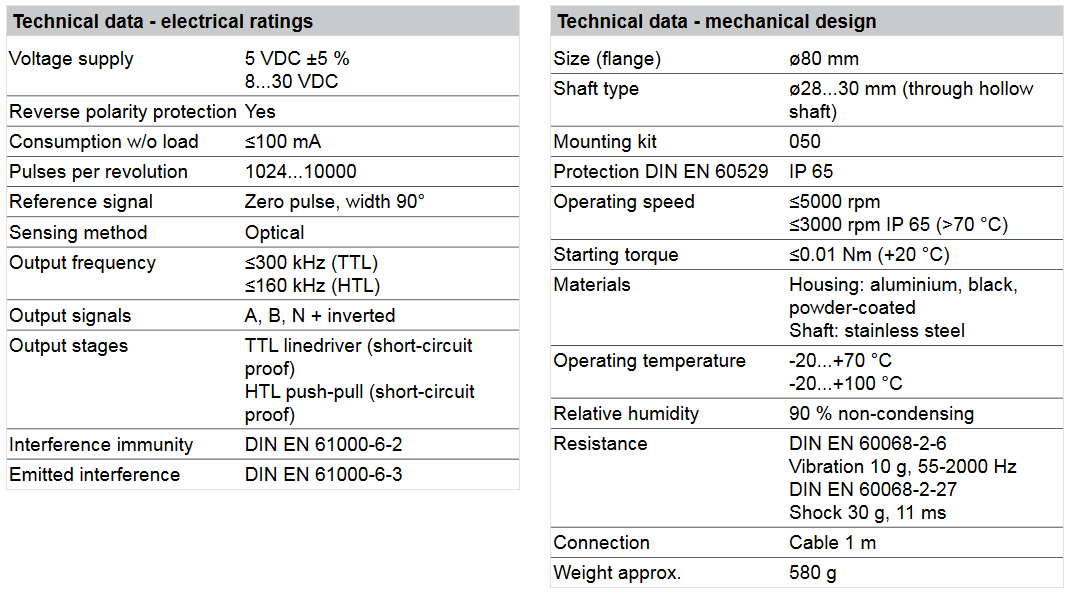

Datasheet
Datasheet
Temperature -20...70 ℃
Pulse 1024 - 10000 pulse
Speed(RPM) 5000 rpm
Frequency 300000 Hz
Output stages HTL / TTL
Size (flange) 80mm
Through hollow shaft 28-30mm
Labels industrial hollow shaft | baumer hollow shaft ITD41A4Y68 | baumer through hollow shaft ITD41A4Y68 | OptoPulse EIL580P-B | ITD 41 A 4 Y68 | Incremental baumer encoders | انوکودر افزایشی بامر | هالو شفت ITD41A4Y68 باز سری | rotary encoders hallow shaft | Optical sensing method | Output signal level TTL or HTL | Precise optical sensing | baumer encoder through hollow shaft |
ITD 41 A 4 Y68
Sales Expert
Sales ExpertMotion Control equipment Section

encoder@radelectric.co

+98 9371036467

+98 2191099990

Description

Features

Through hollow shaft ø28 to ø30 mm



  • Encoder with through hollow shaft ø28...30 mm
  • Max. 10000 pulses per revolution
  • Optical sensing method
  • Mounting by torque support
  • TTL or HTL output signals
  • Cable output radial



Optional

  • Cable with connector
  • Extended operating temperature range
