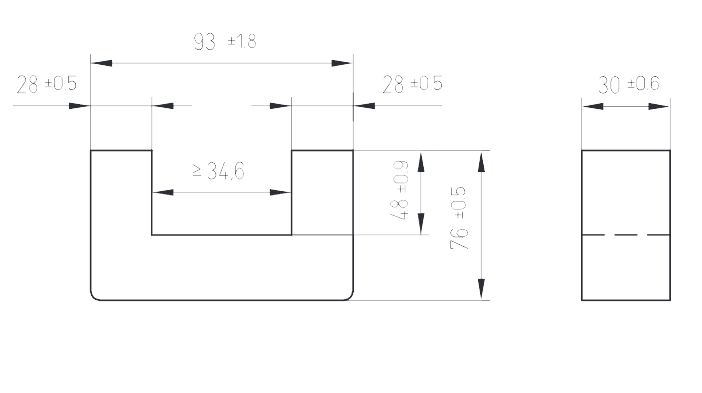

U 93/30/76 Ferrite U cores type U93/30/76

کاشکه kaschke

Favourites Add to favorites
Rating
5


Core factor 0/42mm¯¹
eff. magn. path length 355mm
eff. magn. cross section 840mm²
eff. magn. volume 297400mm³
weight 750gr

Sales Expert
Sales ExpertResistor & Impeder ferrite Section

shahab@radelectric.co

+98 9392036467

+98 2191099990

Description

Application

  • Power Transmission

  • Line Transformers for Producing the High Voltage

  • Ignition Transformers in the Automotive Industry
